Please follow the instructions below to assemble your new SAMi Camera Floor Stand. If you need additional support, please submit our support request form and we'll be in touch to assist you.

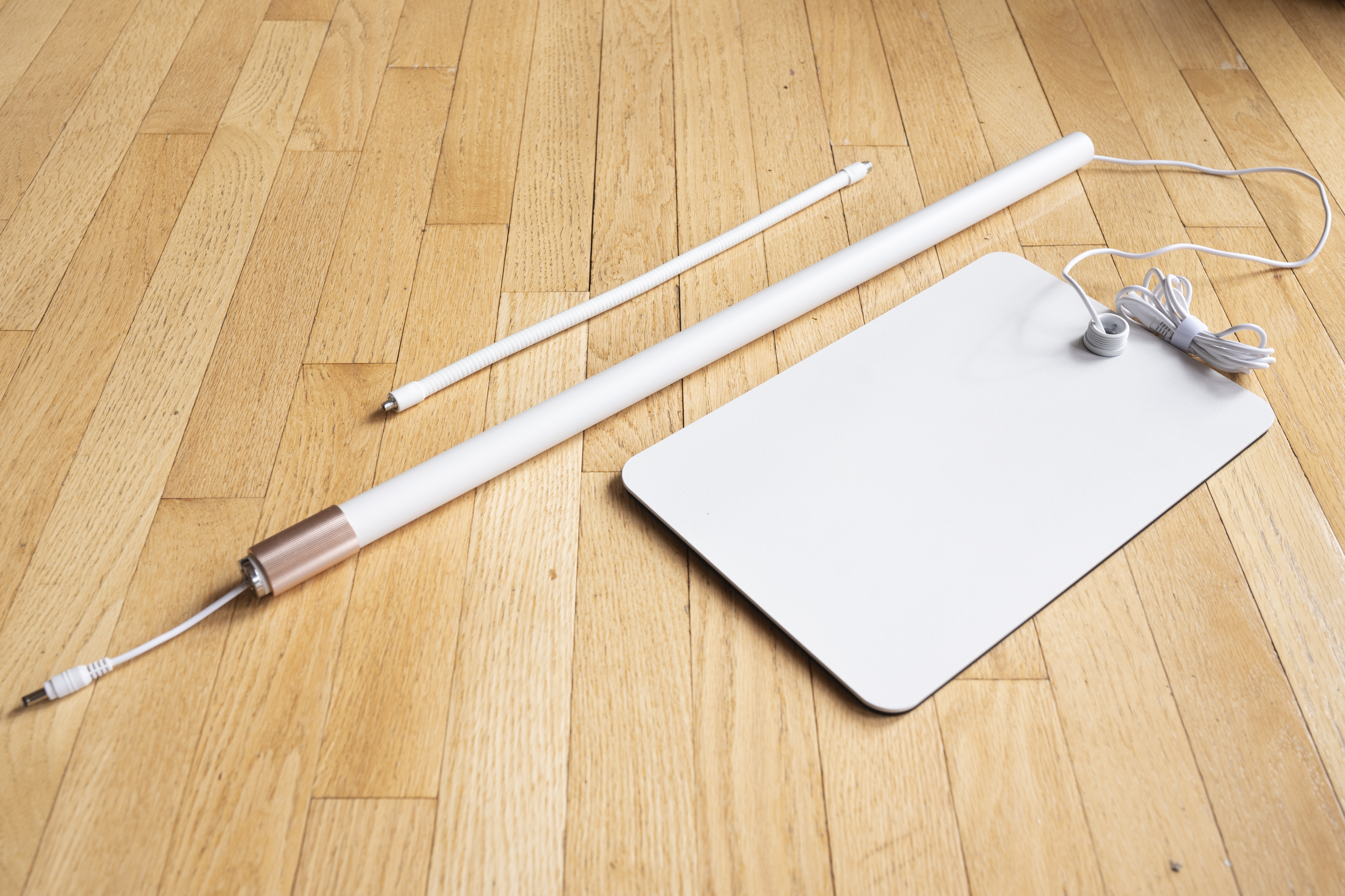

What's included in the box:
- (1) - Base Plate
- (1) - Adjustable Height Pole
- (1) - 15" Goose Neck
- (1) - 9' Pre-Threaded Extension Cord Cable
- (5) - White Velcro Cable Management Straps
Assembly Instructions

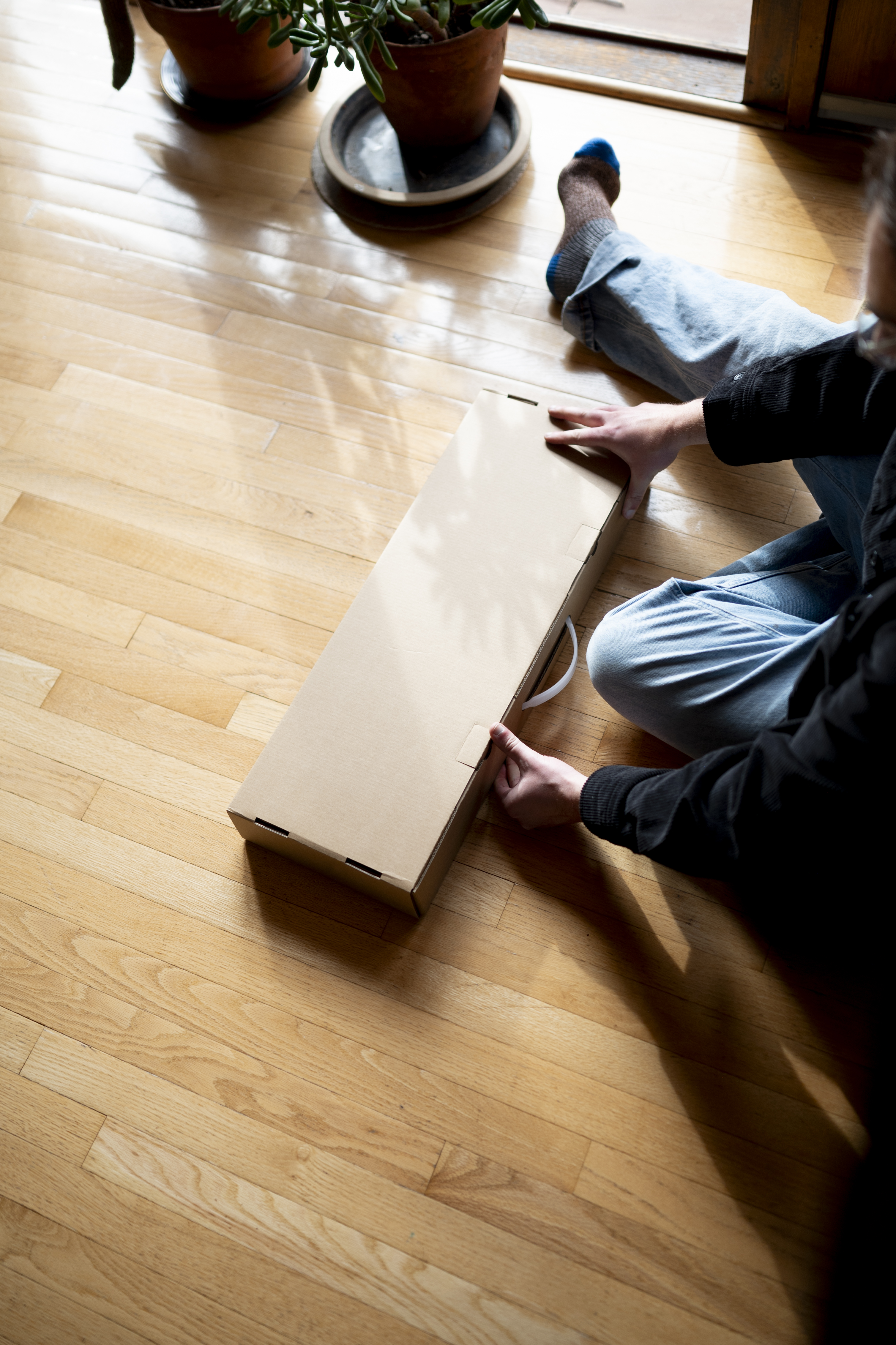

Step 1 - Save The Box!

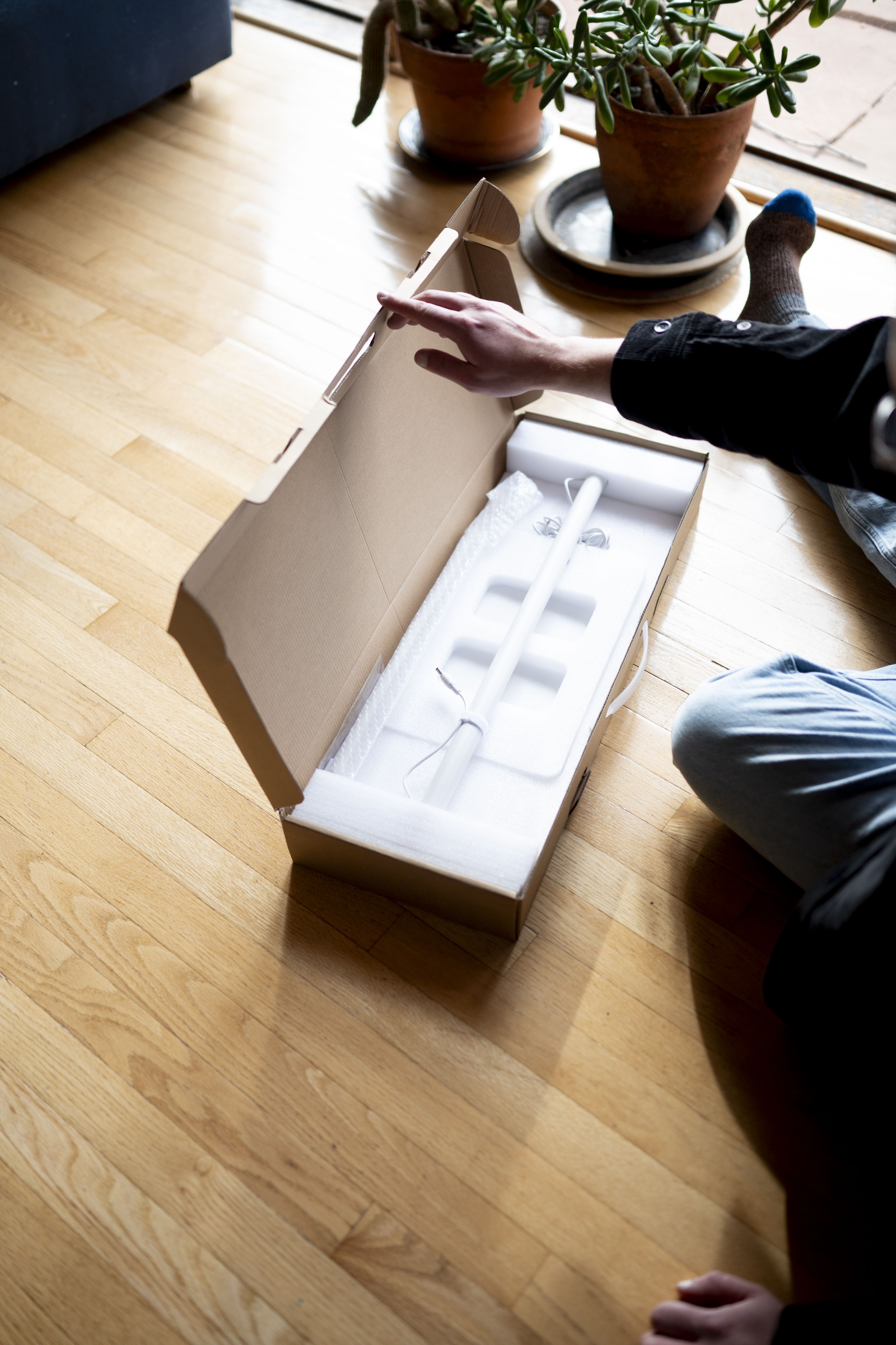

The box that your SAMi Camera Floor Stand was delivered in doubles as your travel case! We recommend saving the box and all inserts so you can take your stand with you on the go!
If you do not plan on taking your SAMi Camera Floor Stand with you when traveling, you can recycle the box it was delivered in!
Step 2 - Assembling the SAMi Camera Floor Stand

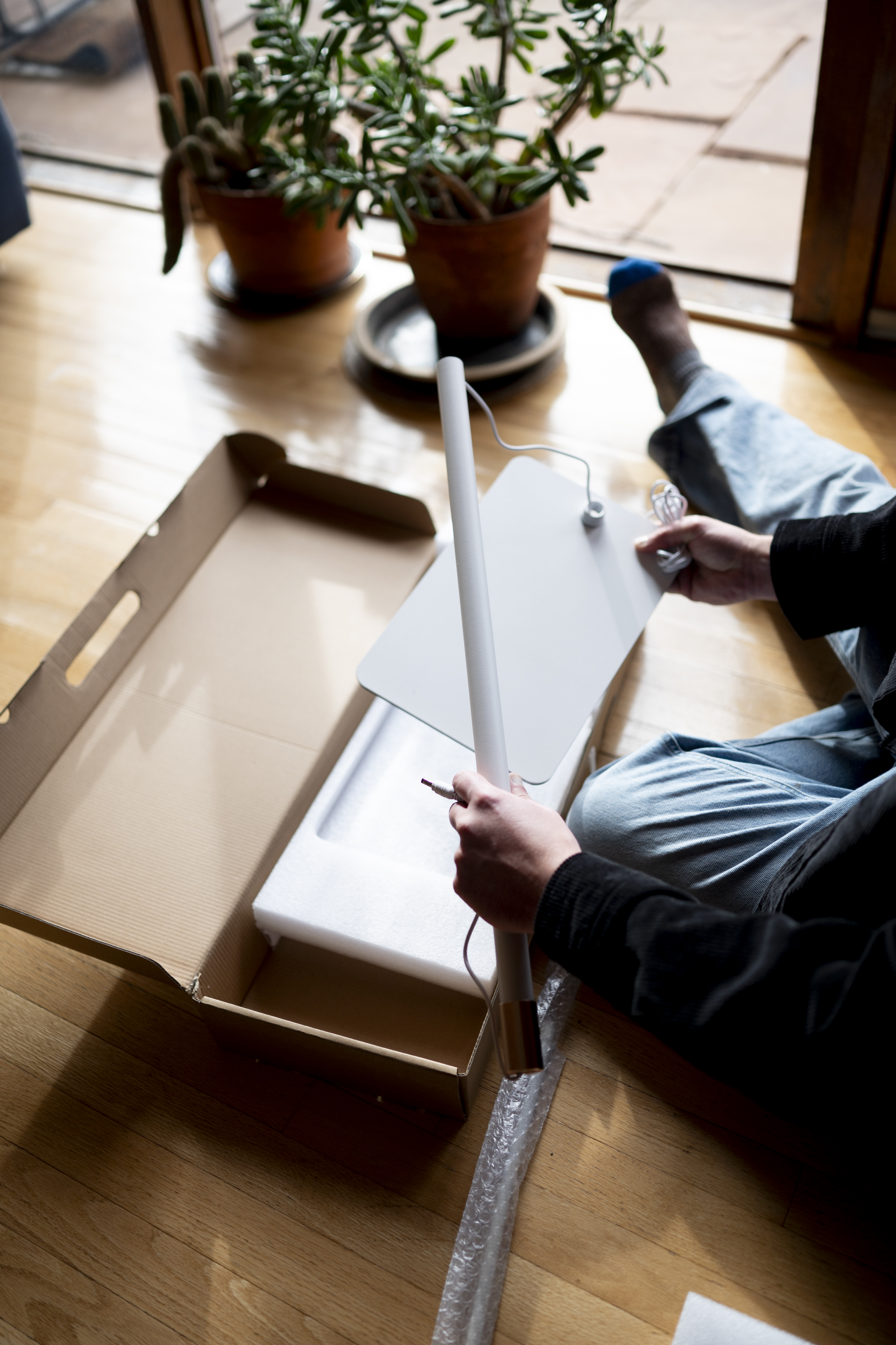

- Remove all of the components in the box carefully to prevent any damage to the pre-threaded extension cord.
- Attach the larger pole to the base of the camera stand by screwing it in clockwise. The gold-colored height adjustment handle should be located at the top while doing this.
Note: You might need to pull the extension cord up from the top to prevent it from getting in the way of the base while doing this - Next, screw the gooseneck into the top of the larger pole using the larger threaded male end of the gooseneck.
- After the gooseneck is attached, you can secure your SAMi Camera to the gooseneck using the mounting port on the back of the camera. It is the gold-colored screw insert located in the center of the back of the camera.

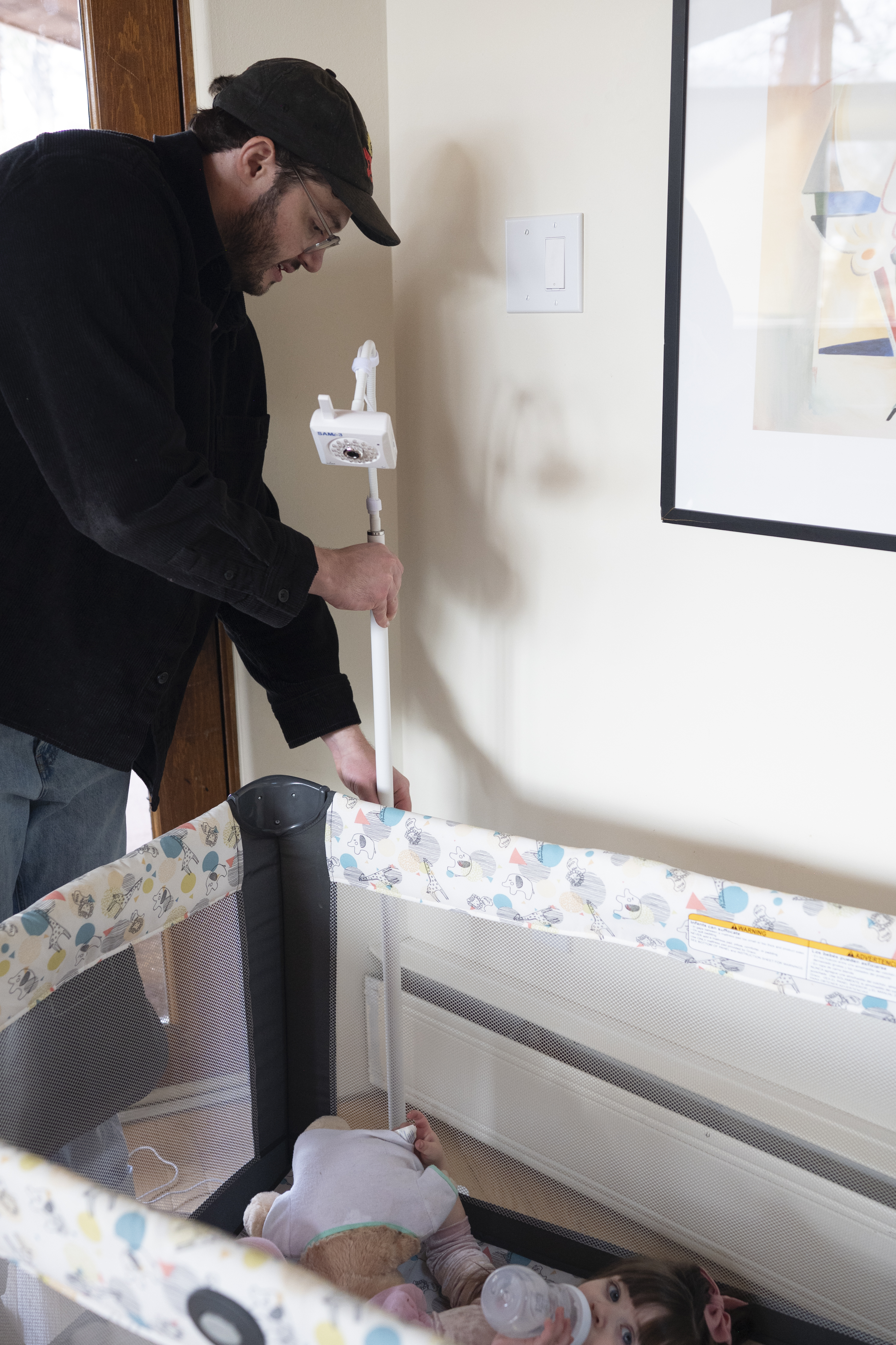

- Now, you can adjust the height of the camera stand by gently loosening the gold adjustment handle. To loosen the pole to adjust the height, turn the gold-colored hand counterclockwise. Grab the gooseneck and begin to gently pull up, revealing an inner pole. Continue pulling until you have reached your desired height. To secure the height of your stand, firmly re-tighten the gold-colored adjustment handle clockwise.
- Now that you have the camera stand at your desired height, you can adjust the gooseneck position with your SAMi camera on it. The gooseneck can be adjusted in a 360-degree motion. Simply grab the gooseneck and bend it in any direction you please.

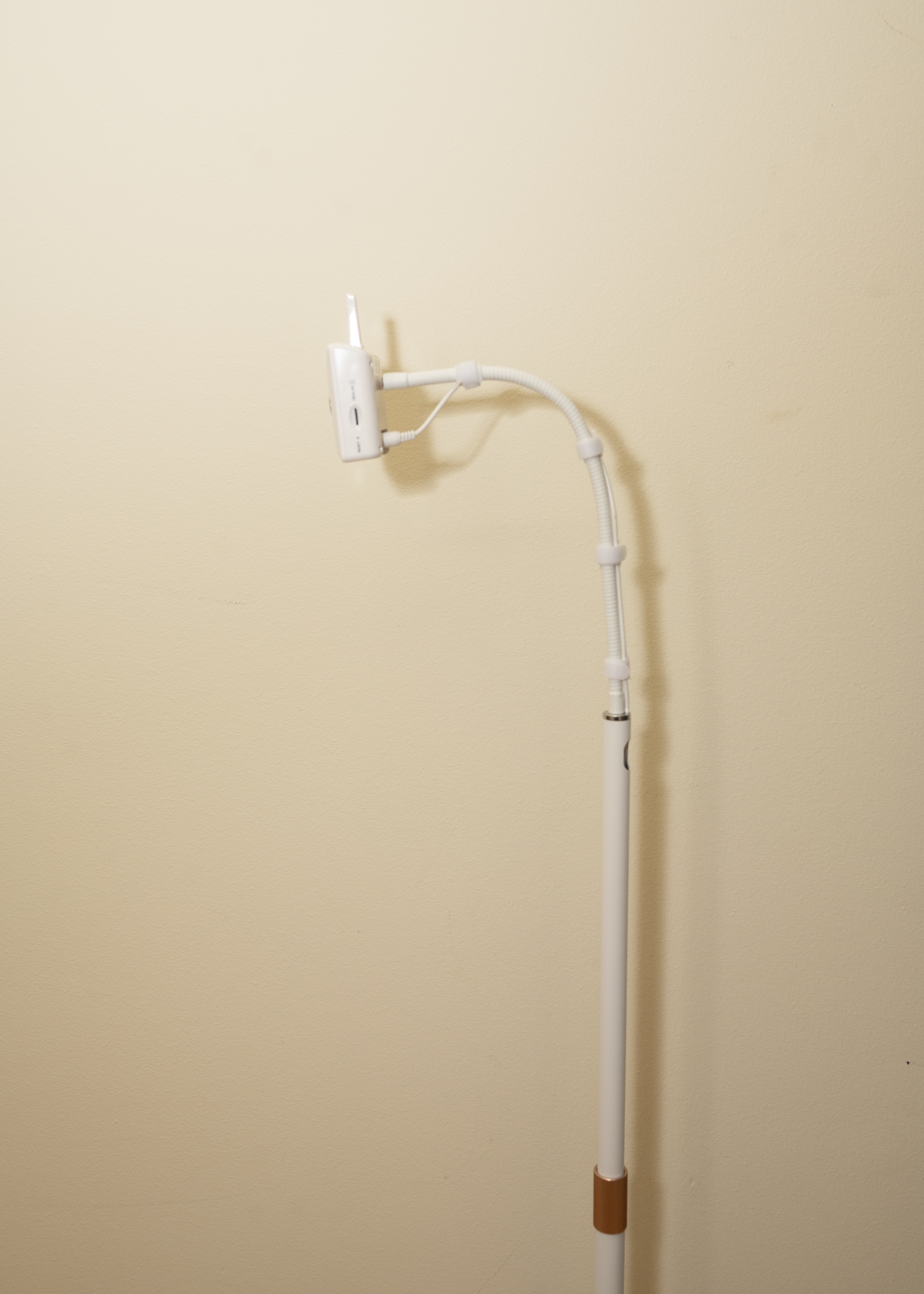

- Once you have your gooseneck in position and the SAMi Camera is pointed at the correct angle, plug the cable at the top of the stand into the back of your SAMi Camera. You might need to pull on the cord to give you some slack to plug it into the camera. Now, use (4)four of the included white velcro cable management straps to secure the cable to the gooseneck. See the image below as a reference.
- Now that everything on the stand is attached and properly secured, it's time to plug in your stand to test your camera angle. Using your current SAMi Camera power cord (not included in the SAMi Camera Floor Stand box), plug the original SAMi camera power cable into the female end of the camera stand’s extension cord located at the bottom of the camera stand.
- Once the floor stand has been connected to the original power cable, power on your SAMi camera by plugging the power cable into an outlet. Open the SAMi app to see your camera's live view. You can make any adjustments to the gooseneck angle until you have the view that you want.
- Once everything looks good with the camera view and your camera stand is placed in the location you want to leave it, you can use the remaining (1) white velcro cable management strap to secure any slack from the power cord leading to your outlet.
Important Safety Notes
If you are monitoring a child in a crib or enclosed bed, make sure that the camera stand and any related cables are out of reach from your child!

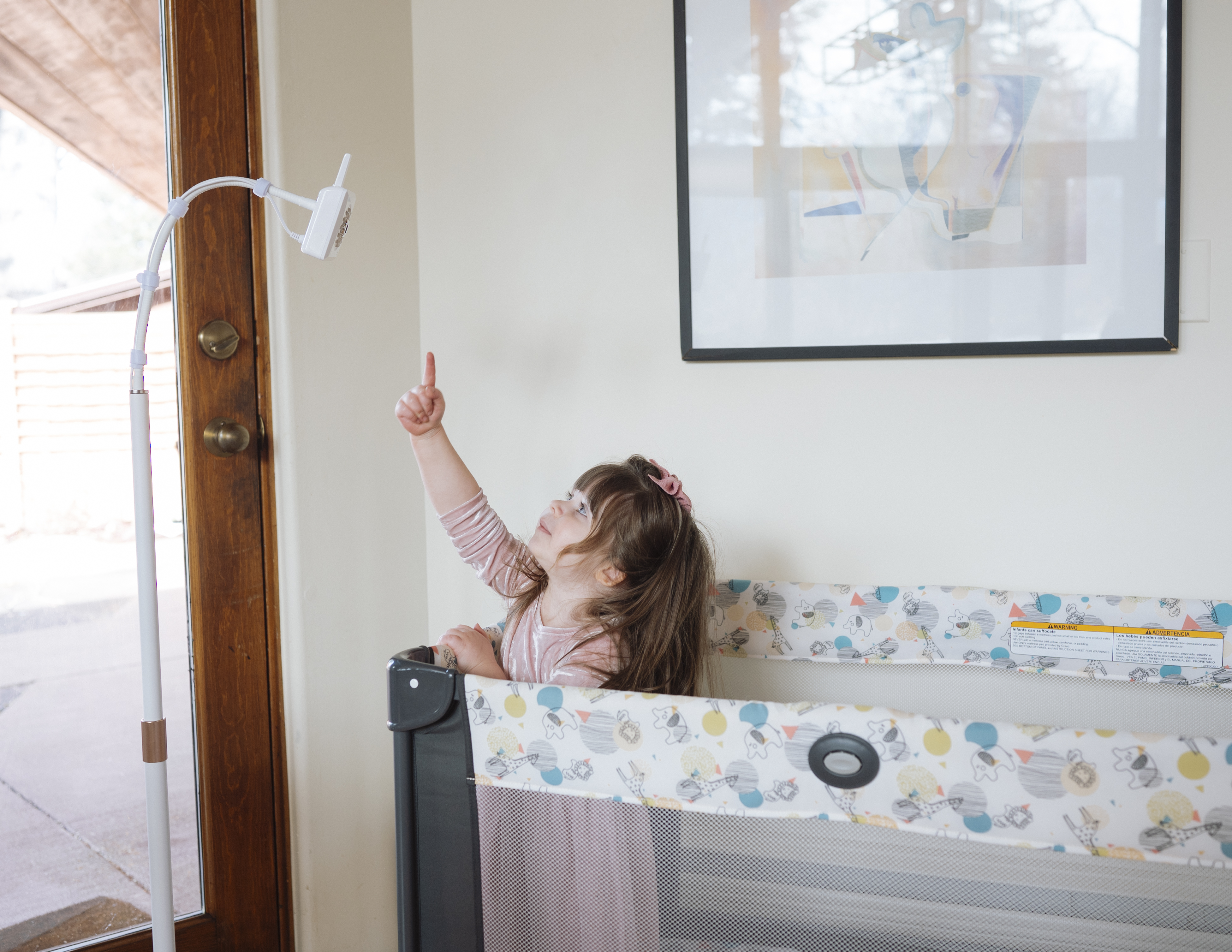

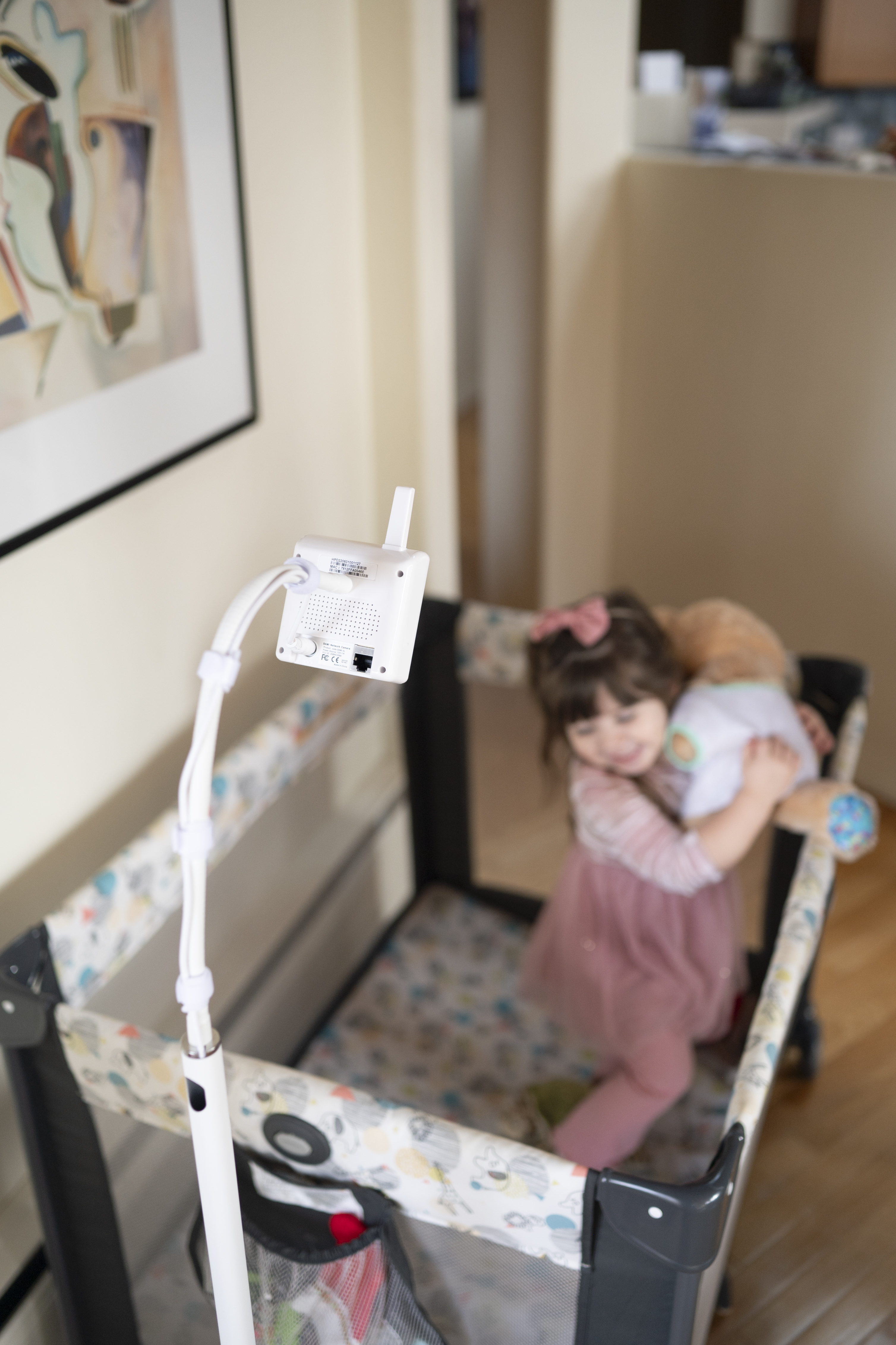

Good Positioning
- Out of reach of the child
- No cables in reach of the child to prevent choking or tipping hazard
- A clear view of the crib
To prevent a choking or tripping hazard, use the white velcro cable management straps to remove slack from the power cord, and do not place it in a location where someone will be walking.
